Credit Card Processing Using Your Existing pos station with Amigo Pos 7



Users that prefer to use an external credit card pos station may customize the available payment options on the order settlement screen to enable managers easy access to non-cash gratuity totals.





Back Office > Configuration > Main Settings

Back Office > Configuration > Main Settings

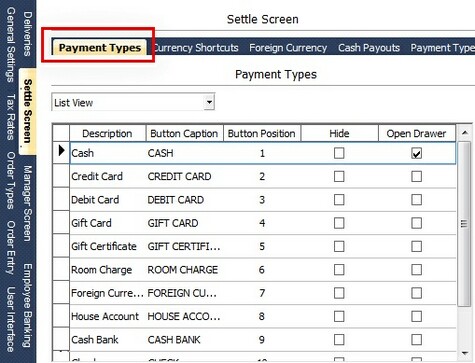

Payment Types Configuration

Payment Types Configuration



Verify that the CREDIT CARD payment type is not disabled in Back Office > Configuration > Main Settings >Settle Screen.





Back Office > Configuration > Credit Cards

Back Office > Configuration > Credit Cards

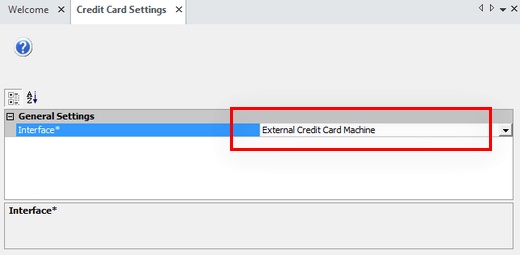

Credit Card Settings

Credit Card Settings





Select External Credit Card Machine next to interface in Back Office > Configuration > Credit Cards





Credit Card Buttons

Credit Card Buttons

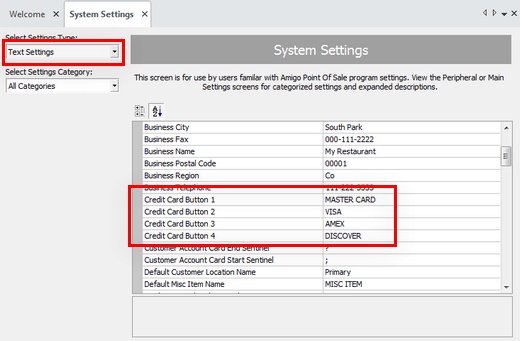

The default settings for credit card types can be modified in Back Office > Configuration > Main Settings >All Program Settings by changing the values of Credit Card Button 1, Credit Card Button 2, Credit Card Button 3 and Credit Card Button 4. These values correspond to the four dark gray buttons on the settlement screen, as shown below.

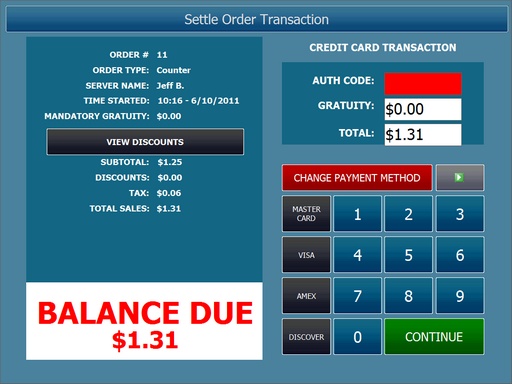

Settle Screen

Settle Screen
